• Word clock - rates from 32 to 384 KHz
• AES - rates from 32 to 96 KHz
• Video sync:
- NTSC/PAL black burst
525/29.97/30i
625/23.98/24/25i
- HD tri-level sync
720/23.98/24/25/29.97/30/50/59.94/60P
1080/25/29.97/30i
1080/23.98/24/25/29.97/30sF
1080/23.98/24/25/29.97/30/50/59.94/60p

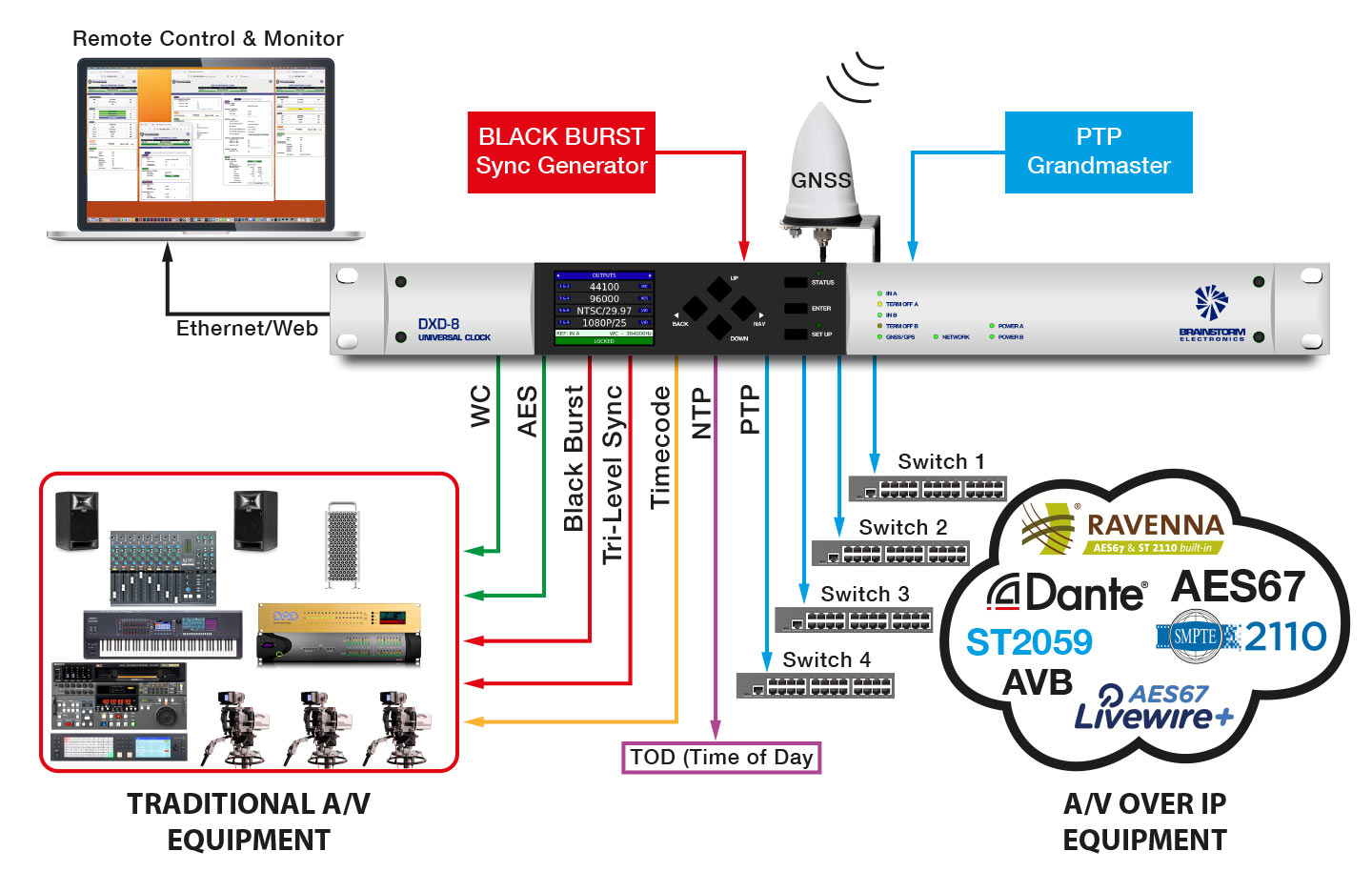

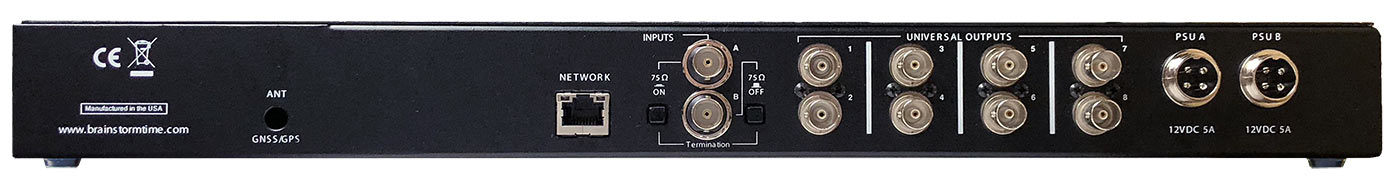

UNIVERSAL OUTPUTS
8 outputs - in 4 pairs
BNC - 75Ω
Output signal: any of the generated legacy references
OSCILLATOR
TCXO: +/- 1ppm
OCXO: +/-10ppb (option)
EXTERNAL SYNCHRONIZATION SOURCES
Word clock
AES
Video sync (Black Burst or HD tri-level sync)
10MHz
GPS (Option)
PTP (Option)
UNIVERSAL INPUTS
2 BNC input connectors (75Ω) accept the following:
• Word clock
• AES
• Video sync (Black Burst or HD tri-level sync)
• 10 MHz
REMOTE CONTROL
SNMP (Small Network Management Protocol)

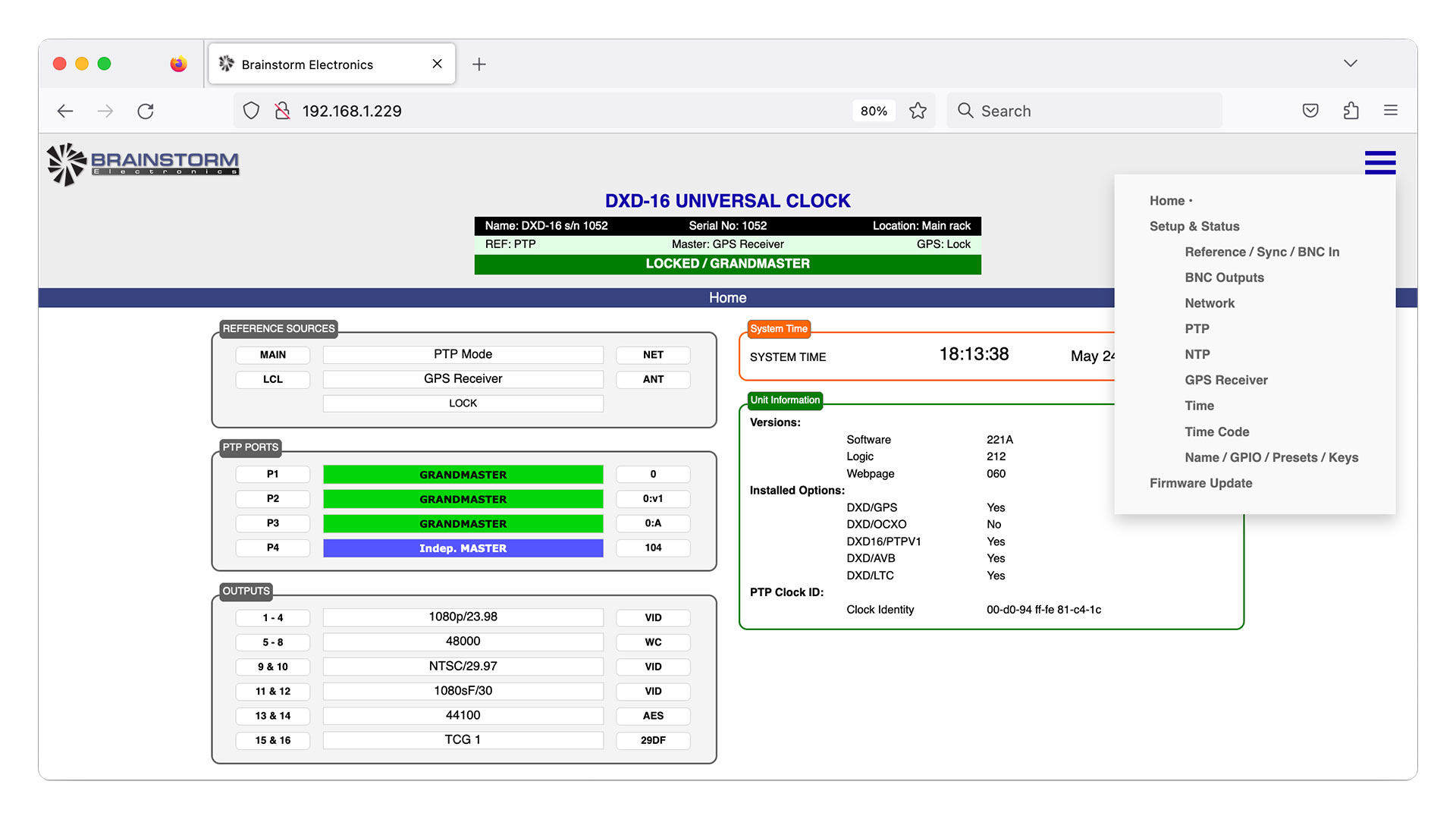

Web browser
ALARM
SNMP (Small Network Management Protocol)
PRESETS
10 presets can be programmed and named
SECURITY
Password protection

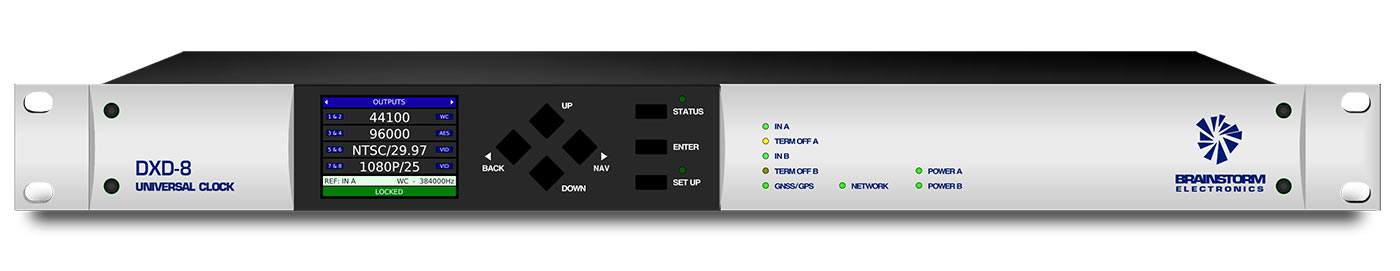

DISPLAY
2.4” TFT LCD - 240 x 320 resolution
POWER
12V DC @ 60W
Dual inputs with auto switch-over for redundancy
CONSUMPTION POWER
Typ.35 watts
Max.45 watts
DIMENSIONS
19” x 1.75” x 8”

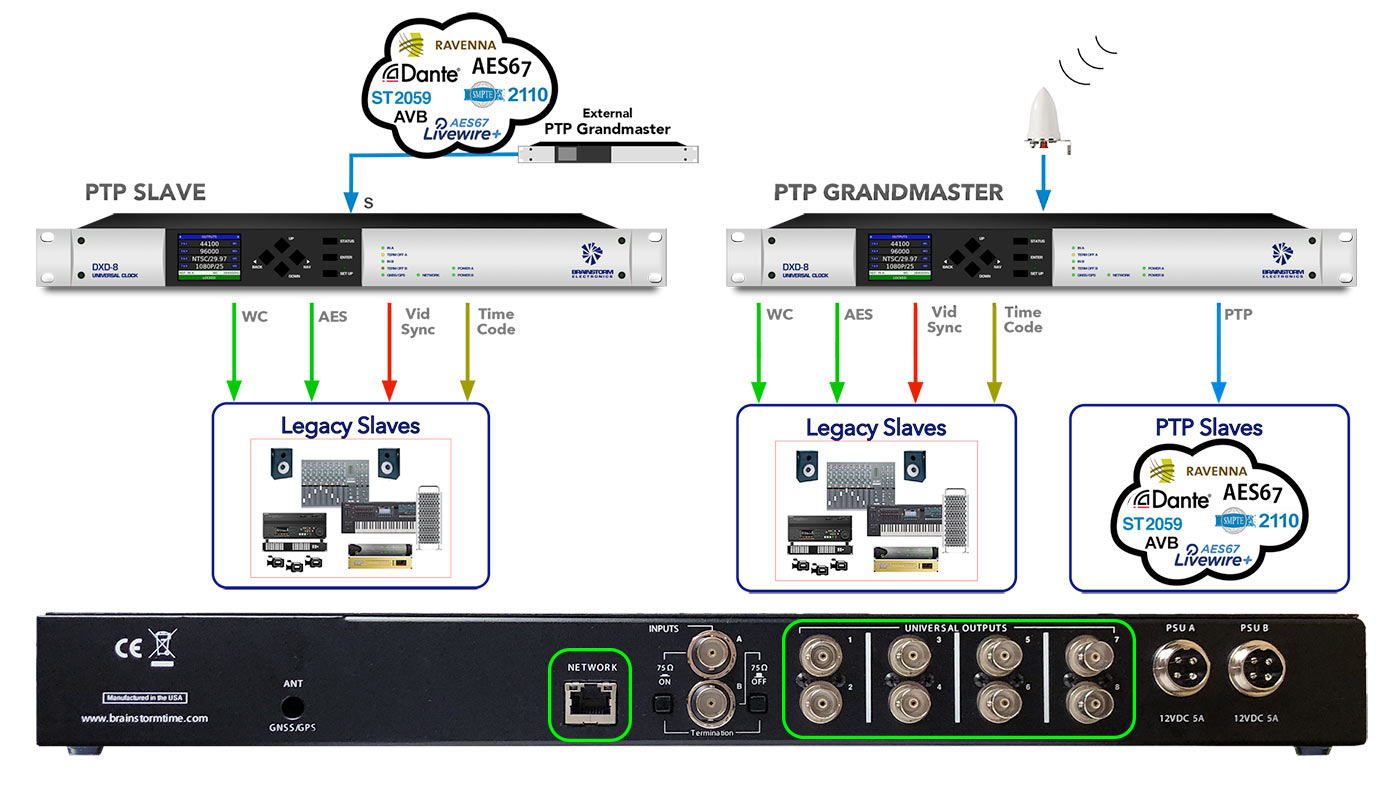

PTP (option)
Complies with IEEE-1588 V2
Unicast / Multicast operation
Configurable as a Grandmaster, slave or Boundary clock
1 Gigabit Ethernet port (RJ-45)

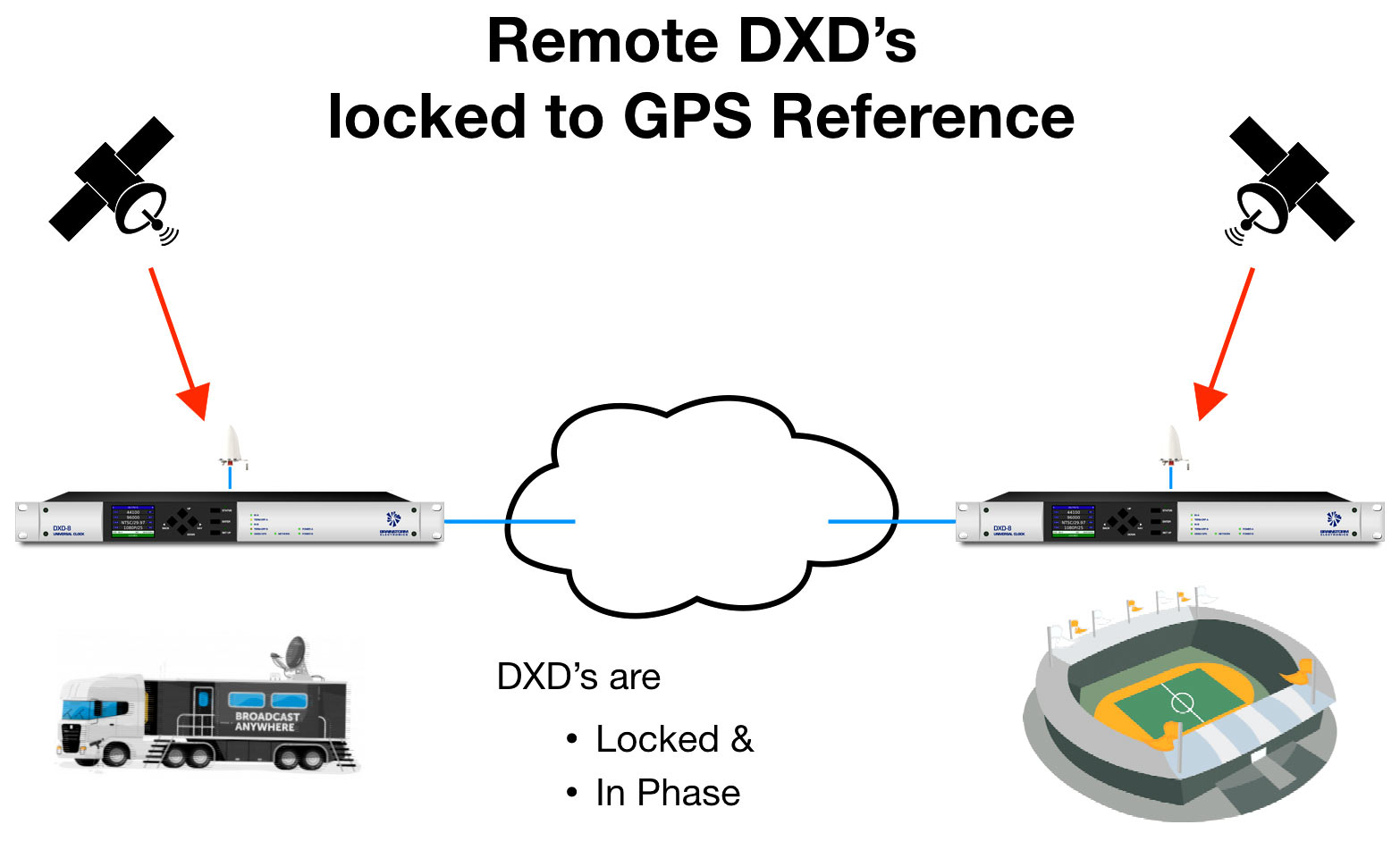

GPS (option)
The DXD-8 can be fitted with an Internal GPS receiver. The option
includes an SMA antenna input.
